Good Quality Laser Welding Machine - 1000W 1500W 2000W Handheld Fiber Laser Welding Machine – Knoppo Detail:
Application
● Sheet metal processing
● Railway transportation
● Automobiles
● Construction machinery
● Agricultural and forestry machinery
● Electrical manufacturing
● Elevator manufacturing
● Household appliances
● Food machinery
● Textile machinery
● Tools Processing
● Petroleum machinery
● Food machinery
● Kitchen and bathroom
● Decorative advertising
● Laser external processing service
Technical parameters
No. |
Model |
KW1000M |
KW1500M |
KW2000M |
I.Laser source |
Raycus / MAX |
Raycus / MAX |
Raycus / MAX |
|
1. |
Output Power (w) |
1000w |
1500w |
2000w |
2. |
Center wavelength |
1080nm ±5 |
||
3. |
Fiber Cable length |
8m |
||
II.Water Cooling |
1.5P |
2P |
2.5P |
|
III.Laser head (XINGHONG from Wuhan),standard model. Qilin /WSX (Optional) |
||||
1 |
Spot size (mm)
|
1.5/1.8/2.0 (XINGHONG) |
||
0.2-5mm adjustable (Qilin) |
||||
0-4mm adjustable (WSX) |
||||
2 |
Working Mode |
“O”(XINGHONG) |
||
dot/line/circle (Qilin) |
||||
“Z”(WSX) |
||||
3 |
Protective lens |
D20*2 |
||
4 |
Auto Wire-feeding |
Optional |
||
IV. Gas |
N2/Ar |
|||
V.Total Power Consumption |
7.5KW |
8.5KW |
10KW |
|
VI.Voltage |
220±20% VAC 50/60Hz |
380±20% V AC 50/60Hz |
||
VII.Dimension (CM) |
62.5*174.6*109 |
62.5*175.6*124 |
Welding ability
Welding Penetration Maximum Material | Welding Maximum Material | ||
Stainless steel | 1000w | 3mm | 4mm |
1500w | 4mm | 5mm | |
2000w | 5mm | 6mm | |
Galvanized sheet | 1000w | 2mm | 3mm |
1500w | 3mm | 5mm | |
2000w | 3mm | 6mm | |
Iron | 1000w | 3mm | 5mm |
1500w | 4mm | 6mm | |
2000w | 4mm | 6mm | |
Mild steel | 1000w | 3mm | 5mm |
1500w | 4mm | 6mm | |
2000w | 4mm | 6mm | |
Aluminum | 1000w | 1mm | 2mm |
1500w | 2mm | 3mm | |
2000w | 3mm | 4mm | |
Brass | 1000w | 1mm | 2mm |
1500w | 2mm | 2mm | |
2000w | 2mm | 3mm |

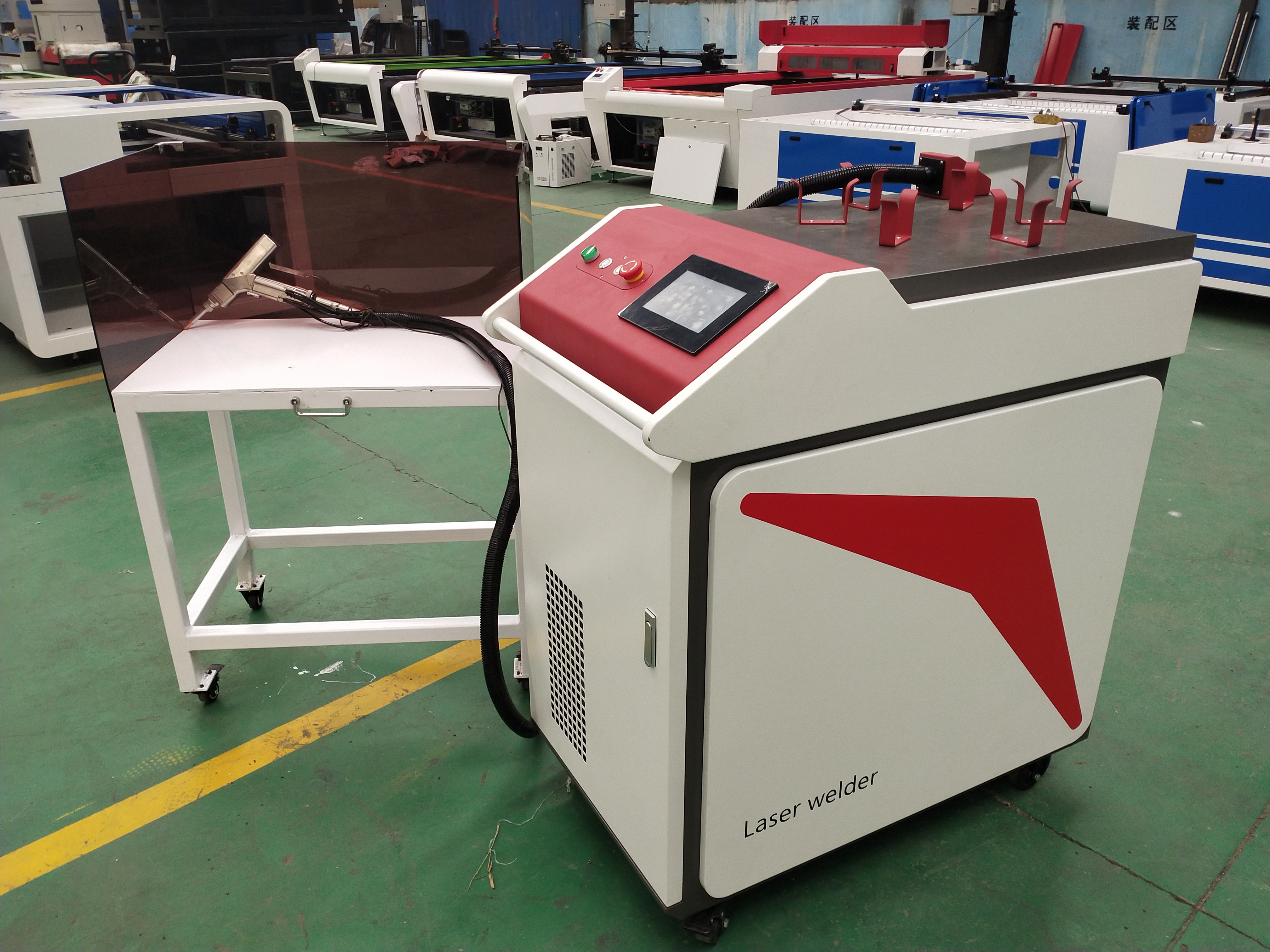

Product detail pictures:
