Factory Cheap 1630 Co2 Laser Cutting Machine - 1000W 1500W 2000W Small Sheet Metal Fiber Laser Cutter – Knoppo

Featured Image
  • nanoparticles

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

We've one of the most innovative manufacturing devices, experienced and qualified engineers and workers, recognized good quality handle systems and also a friendly experienced income team pre/after-sales support for Cnc Fiber Laser Cutting Machine, Metal Pipe Laser Cutter, 160t 3200mm CNC Hydraulic Press Brake, We are sincerely looking forward to cooperate with customers all over the world. We believe we can satisfy you. We also warmly welcome customers to visit our company and purchase our products.
Factory Cheap 1630 Co2 Laser Cutting Machine - 1000W 1500W 2000W Small Sheet Metal Fiber Laser Cutter – Knoppo Detail:

Application

Applicable Materials Of Small Sheet Metal Fiber Laser Cutter

Small sheet metal fiber laser cutter can cut stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate.

Applicable Industries Of Small Sheet Metal Fiber Laser Cutter

Small sheet metal fiber laser cutter is used for industry of machinery parts, electrics, electrical cabinet, kitchenware, elevator panel , hardware tools, metal enclosure, advertising sign letters, lighting lamps, metal crafts, decoration, jewelry, medical instruments, automotive parts, metal jewelry and other metal cutting fields.

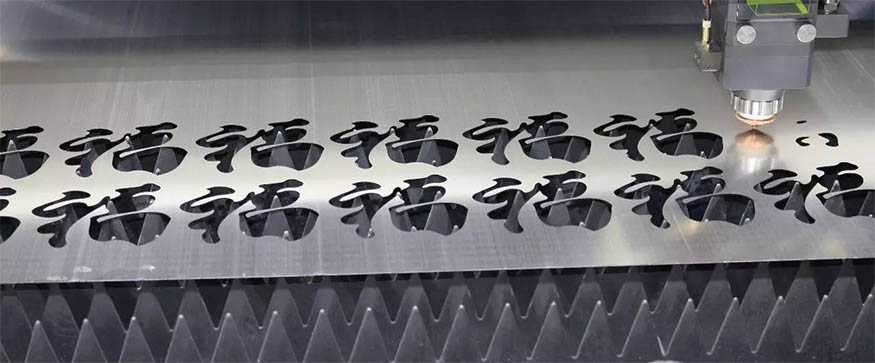

Sample

1000W 1500W 2000W Small Sheet Metal Fiber Laser Cutter

Configuration

* Under table extraction fan.
*Positioning and re-positioning accuracy is 0.02mm.
* laser source in 1KW, 1.5KW , 2KW , 3KW , 4KW – Lifespan 100,000 hours.
* Precision Switzerland Raytools laser head , NO.1 brand on the world.
* Ball screw drive guide rail system from Taiwan.
* Japanese Fuji servo motor driver.
* Taiwan Hiwin guide rails.
* German Schneider Electronics Parts.
* CypCut software including nesting capability – stable and efficient productivity.
* Water chiller and extraction system included.

Techinical parameters

Model

KP1390

Wavelength

1070nm

 Cutting Area

600*600mm, 1300*900mm And other customized size.

Laser Power

1000W / 1500W / 2000W / 3000W / 4000W

X/Y-axis Positioning Accuracy

0.03mm

X/Y-axis Repositioning Accuracy

0.02mm

Max. Acceleration

1.5G

Max. linkage speed

140m/min

Cutting parameters

Cutting Parameters

1000W

1500W

2000W

3000W

4000W

Material

Thickness

speed m/min

speed m/min

speed m/min

speed m/min

speed m/min

Carbon steel

1

8.0–10

15–26

24–32

30–40

33–43

2

4.0–6.5

4.5–6.5

4.7–6.5

4.8–7.5

15–25

3

2.4–3.0

2.6–4.0

3.0–4.8

3.3–5.0

7.0–12

4

2.0–2.4

2.5–3.0

2.8–3.5

3.0–4.2

3.0–4.0

5

1.5–2.0

2.0–2.5

2.2–3.0

2.6–3.5

2.7–3.6

6

1.4–1.6

1.6–2.2

1.8–2.6

2.3–3.2

2.5–3.4

8

0.8–1.2

1.0–1.4

1.2–1.8

1.8–2.6

2.0–3.0

10

0.6–1.0

0.8–1.1

1.1–1.3

1.2–2.0

1.5–2.4

12

0.5–0.8

0.7–1.0

0.9–1.2

1.0–1.6

1.2–1.8

14



0.5–0.7

0.8–1.0

0.9–1.4

0.9–1.2

16





0.6-0.8

0.7–1.0

0.8–1.0

18





0.5–0.7

0.6–0.8

0.6–0.9

20







0.5–0.8

0.5–0.8

22







0.3–0.7

0.4–0.8

Stainless steel

1

18–25

20–27

24–50

30–35

32–45

2

5–7.5

8.0–12

9.0–15

13–21

16–28

3

1.8–2.5

3.0–5.0

4.8–7.5

6.0–10

7.0–15

4

1.2–1.3

1.5–2.4

3.2–4.5

4.0–6.0

5.0–8.0

5

0.6–0.7

0.7–1.3

2.0-2.8

3.0–5.0

3.5–5.0

6



0.7–1.0

1.2-2.0

2.0–4.0

2.5–4.5

8





0.7-1.0

1.5–2.0

1.2–2.0

10







0.6–0.8

0.8–1.2

12







0.4–0.6

0.5–0.8

14









0.4–0.6

Aluminum

1

6.0–10

10–20

20–30

25–38

35–45

2

2.8–3.6

5.0–7.0

10–15

10–18

13–24

3

0.7–1.5

2.0–4.0

5.0–7.0

6.5–8.0

7.0–13

4



1.0–1.5

3.5–5.0

3.5–5.0

4.0–5.5

5



0.7–1.0

1.8–2.5

2.5–3.5

3.0–4.5

6





1.0–1.5

1.5–2.5

2.0–3.5

8





0.6–0.8

0.7–1.0

0.9–1.6

10







0.4–0.7

0.6–1.2

12







0.3-0.45

0.4–0.6

16









0.3–0.4

Brass

1

6.0–10

8.0–13

12–18

20–35

25–35

2

2.8–3.6

3.0–4.5

6.0–8.5

6.0–10

8.0–12

3

0.5–1.0

1.5–2.5

2.5–4.0

4.0–6.0

5.0–8.0

4



1.0–1.6

1.5–2.0

3.0-5.0

3.2–5.5

5



0.5–0.7

0.9–1.2

1.5–2.0

2.0–3.0

6





0.4–0.9

1.0–1.8

1.4–2.0

8







0.5–0.7

0.7–1.2

10









0.2–0.5
