5 Axis CNC Square And Round Pipe Tube Plasma Cutting Machine

Short Description:

Model No.: T300

Warranty : 3 Years Warranty
Introduction:
T300 5 axis plasma pipe cutting machine is specially developed to cut metal pipes, including round pipe, square pipe ,
rectangular pipe , angle steel , channels etc ,It can cut carbon steel, stainless steel etc , widely used in steel structure
construction, shipbuilding, marine engineering, bridge, the elevator industry, building walls, bridges, towers and mechanical engineering industries, etc.


Product Detail

Product Tags

5轴主图

Application :

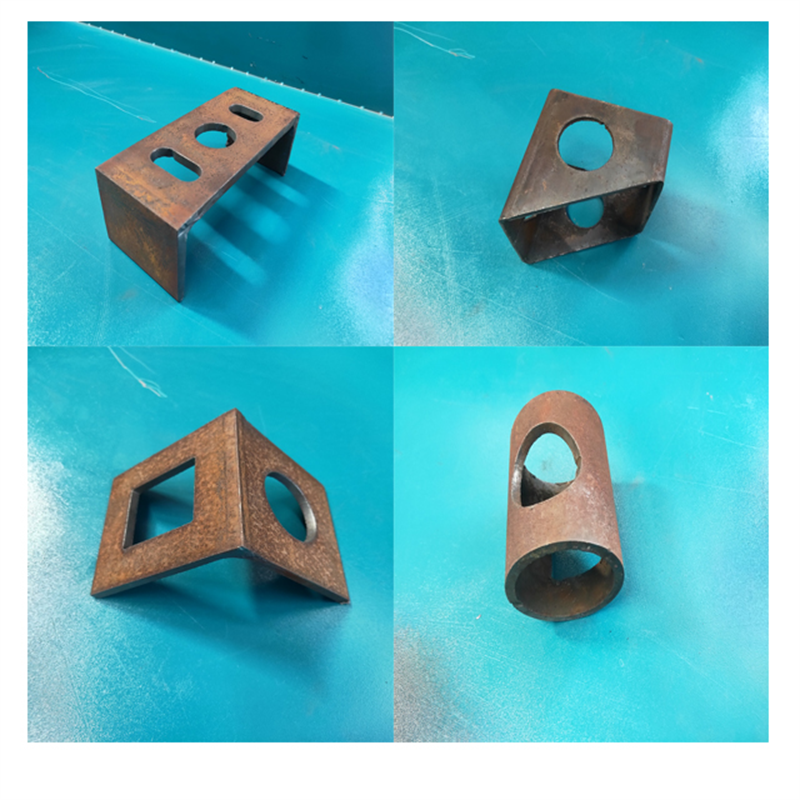

Applicable Materials of plasma pipe cutting machine

Cutting stainless steel, carbon steel, mild steel, iron . Cutting round pipe , square pipe , angle steel , steel channels etc .

asda (1)Applicable Industries of plasma pipe cutting machine

metal fabrication ,  oild and gas pipe , steel construction , tower , train rail and other steel cutting fields .

asda (2)



Configuration :

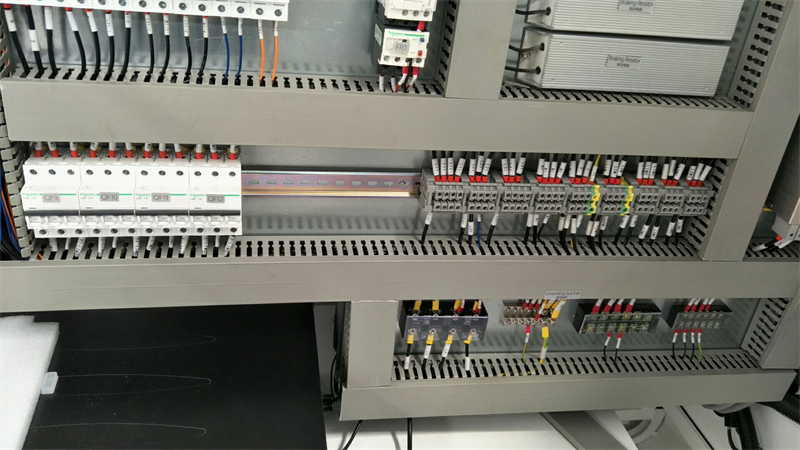

 asda (4) France Schneider Electrical Components       * The selection of branded spare parts technical services is guaranteed, and technical online service support .

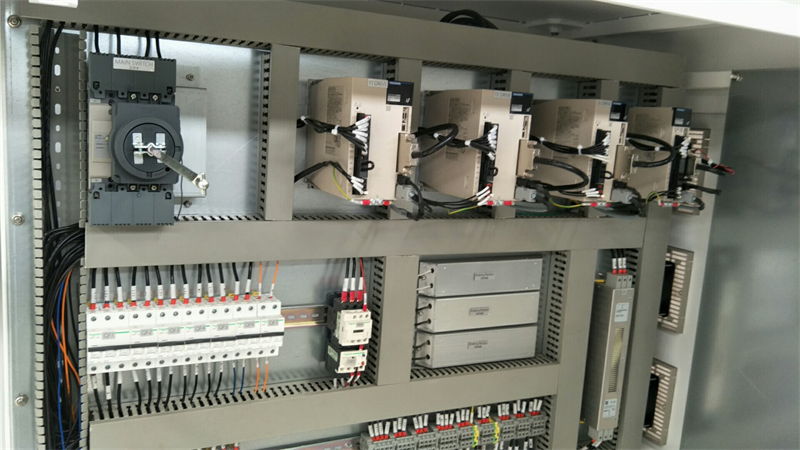

High Quality Servo Motor:                   * High motion precision: It can realize the closed-loop control of position, speed and torque; overcome the problem of stepping motor out-of-step; read data in time with encoder feedback to compare the position.* Speed: Good high-speed performance, generally rated speed can reach 1500-3000 rpm . .  asda (3)

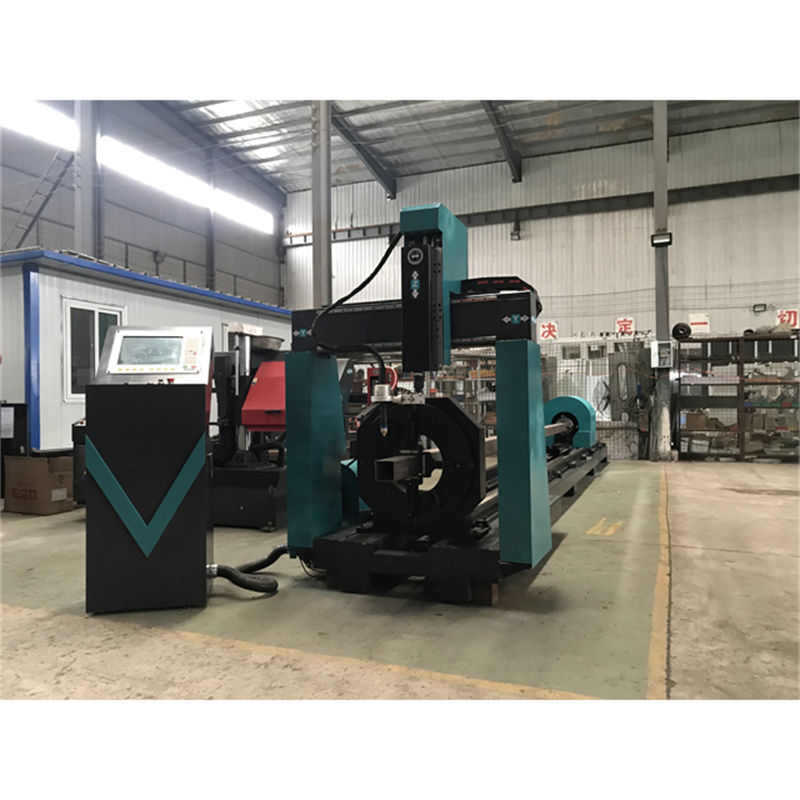

 asda (5) Automatic Feeding And Rotary :                  Cuts and holes is no problem .

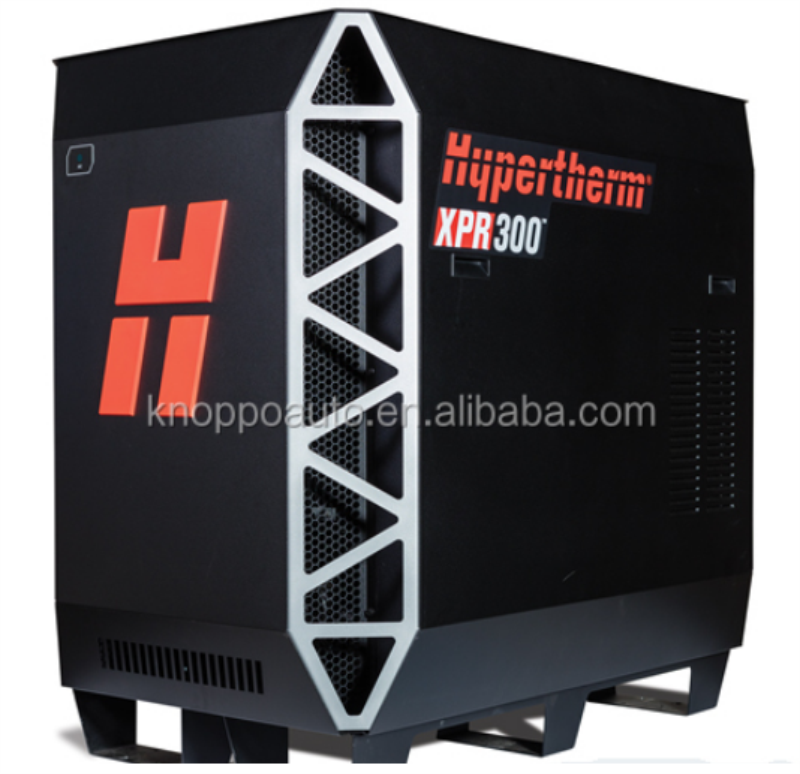

USA HYPERTHERM PLASMA


Hypertherm’s versatile plasma systems have been designed and built for maximum efficiency and productivity for x-y cutting, chamfering and robotics operations. it produces perfect bolt holes with beveling and all robotic cut sequences.
 asda (6)

Techinical Parameters

Model

T300

Max Cutting Length

6m / 9m / 12 m

Min Cutting Length

0.4 m

Max Cutting Diamter

500mm

Min Cutting Diameter

30mm

Reposition precision

0.02mm

Processing precision

0.1mm

Maximum cutting speed

6000mm/min

Torch Height control mode

Automatic

Control system

EOE-HZH

Electrical Supplier

380V 50HZ / 3 Phase
